WRY hot oil pump

WRY hot oil pump Use
WRY series hot oil pump has been widely used in the carrier heating system in China, and suitable for petroleum, rubber, resin, textiles, printing & dyeing, construction, machine etc. Working temp.≤350℃.

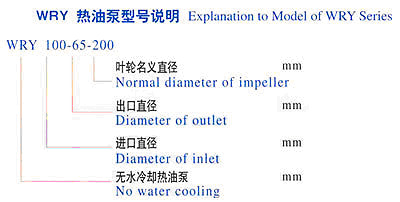

Model NO.

Structural Features

It adopts the natural heat dissipation structure which is easy, has small volume, save running cost, hash good performance and good reliability.

Spec. & Parameters

Model NO.	Rate of flow m3/h	Lift m	Rotate speed r/min	Power KW		Efficiency n%	Cavitation allowance m
Model NO.	Rate of flow m3/h	Lift m	Rotate speed r/min	Shaft power	Matched power	Efficiency n%	Cavitation allowance m
26-20-100	4.5	15	2825	0.45	0.75	40	0.8
50-32-150	8	22	2840	1.0	1.5	42	1.6
50-32-160	10	25	2840	1.5	2.2	42	1.8
65-40-160	12.5	25	2880	2.5	3	45	2.2
50-50-170	12.5	32	2890	3.2	4	45	2.5
50-50-150	24	18	2890	3.1	4	46	1.8
65-40-190	18	40	2890	4.5	5.5	52	2.8
65-50-180	32	32	2900	4.5	5.5	52	2.7
65-50-170	40	25	2900	4.5	5.5	52	2.7
65-50-150	52	16	2900	4.2	5.5	52	2.8
65-40-200	25	50	2900	6.7	7.5	63	3.1
80-50-180	40	40	2900	6.7	7.5	63	3.1
80-50-170	60	20	2900	6.7	7.5	63	3.1
100-65-190	60	38	2930	9.2	11	68	3.5
100-65-200	80	40	2930	12.5	15	70	3.5
100-65-220	58	50	2930	12.5	15	68	3.5
100-65-210	90	45	2930	15.7	18.5	70	3.6
100-65-230	58	60	2930	15.5	18.5	62	3.5
100-65-230	100	55	2940	19.5	22	70	3.6
125-100-190	155	30	2930	17.6	22	72	3.8
100-65-240	100	70	2950	25.5	30	69.8	4.1
100-65-257	100	80	2950	32.5	37	67	3.6
125-100-220	160	45	2950	25.5	37	75	3.6
125-80-250	160	60	2970	35.5	45	74	5
125-80-270	150	85	2970	46	55	73	5
125-100-250	200	60	2970	42.8	55	76.8	6
125-100-257	260	70	2970	64.3	75	77	6.8
125-100-265	200	80	2970	59	75	74	6
125-100-245	300	55	2970	61	75	74	7.5
125-100-260	300	70	2970	75.3	90	78.2	8
125-100-270	220	85	2970	68	90	76	6
125-100-280	260	85	2970	75	90	76	6.8
150-125-250	350	60	2970	75.2	90	76	8.6
150-125-240	400	50	2970	72	90	76	9.8
150-125-270	340	76	2970	89.5	110	78.6	8.5
150-125-250	400	60	2970	88	110	74	9.8
150-125-280	400	78	2970	106	132	80.6	9.8
150-125-280	370	85	2970	106	132	80	9.7
250-200-500	500	80	1480	136	160	76	5
300-250-500	600	80	1480	158	185	70	9
250-200-550	700	80	1480	190	220	81	14
